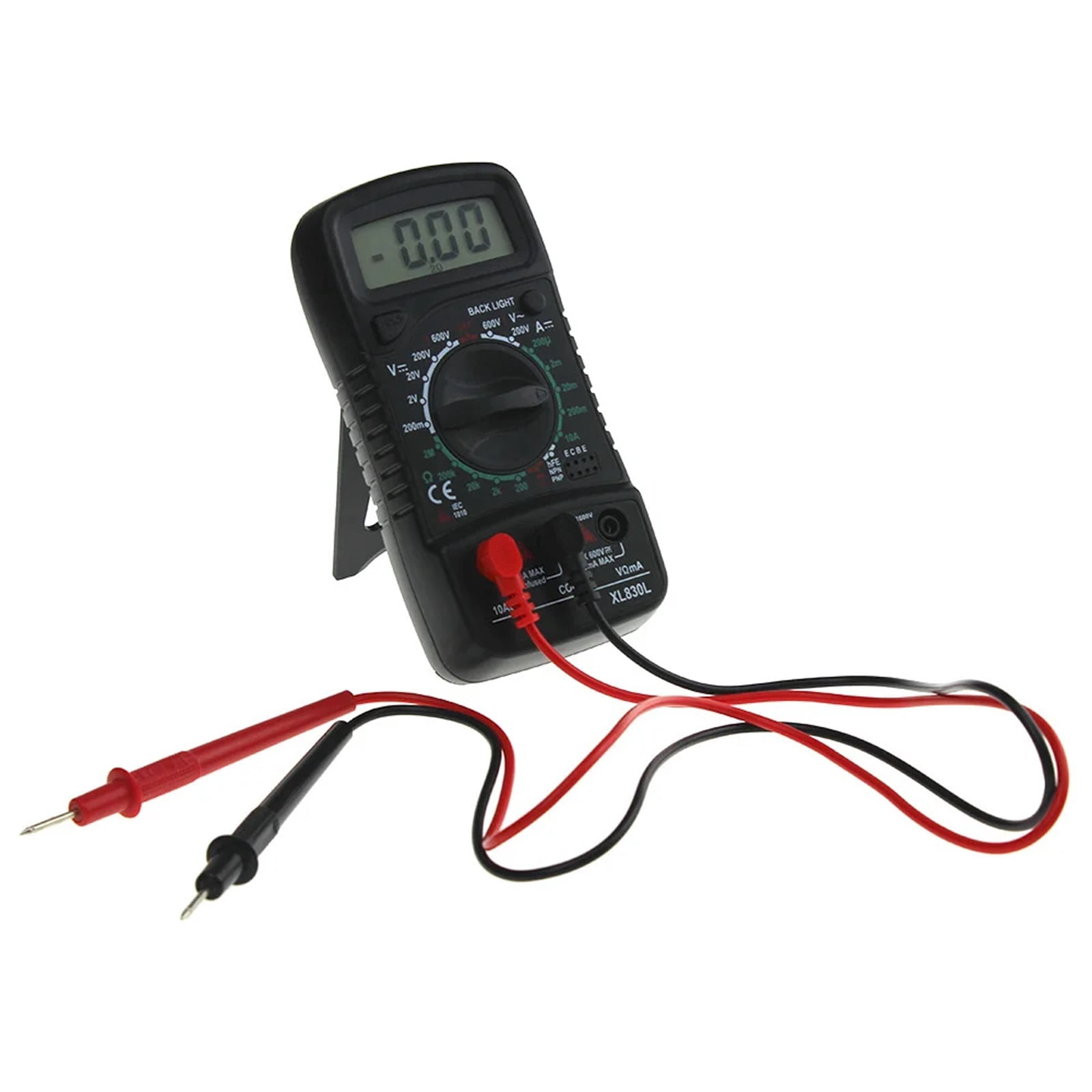

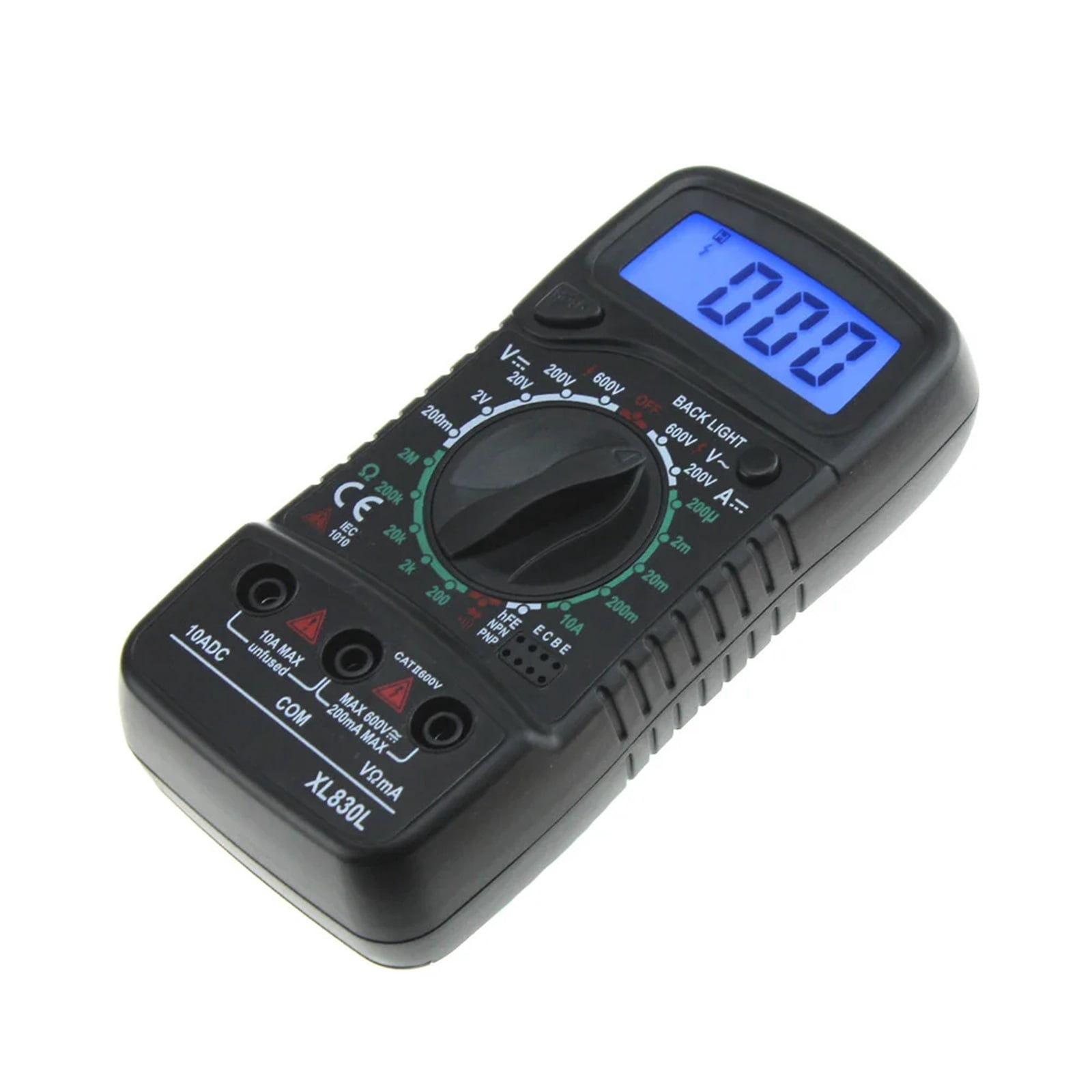

10Pcs/lot Digital Multimeter Measuring Instruments AC DC Voltage Meter Multi Tester Voltmeter 3 In 1 For Electrician XL830L ,High Accuracy

<p>DC voltage: 200mV -- 2-20-200-600v ± 0.5%</p><p>AC voltage: 200v-600v ± 1.0%</p><p>DC current: 200u-2m-20m-200m-10a ± 1.8%</p><p>Resistance: 200-2k-20k-200k -- 2m ± 1.0%</p><p>Triode measurement: Yes (PNP / NPN triode HFE)</p><p>Diode measurement: Yes</p><p>Input resistance: 1m </p><p>Battery: 9V, 6f22</p><p>Display: 1999 (3.5 bit LCD)</p><p>Display size: 45 × 20mm</p><p>Product description</p><p>3 1 / 2 digital LCD, display value 1999</p><p>.Data holding function</p><p>.Low voltage symbol display</p><p>.Background light function</p><p>.Overload protection</p><p>.On off measurement</p><p>Diode: Yes</p><p>Triode: Yes</p><p>On off measurement: Yes</p><p>Data retention: Yes</p><p>Background light: Yes</p><p>Power supply: 6f22 9V battery</p><p>Display: 1999</p><p>Dimensions: one hundred and thirty × sixty-five × 33mm</p><p>Weight: 153g(with color box)(No battery)</p><p>No battery, all English instructions</p><p>Specifications:</p><p>DC Voltage 200mV/2V/20V/200V/600V±(0.5%)</p><p>AC Voltage 200V/600V±(1.0%)</p><p>DC Current 200 A/2mA/20mA/200mA/10A±(1.0%)</p><p>Resistance 200/2k/20k/200/2M±(1.0%)</p><p>TriodeMeasurement Yes (PNP/NPN Triode hFE)</p><p>Input Resistance 1M</p><p>Battery Type 9V( Not include)</p><p>Max. Display 1999</p><p>Display Size 45 X 20MM</p><p>Color Black +yellow</p><p>Dimensions130×65×33mm</p><p>Package List:</p><p>1 x Digital LCD Multimeter</p><p>1 x Test Leads</p><p>1 x manual</p><p>1 x Box</p><p>==========</p><p>Is Smart Device : YES</p><p>Operating Mode : Hand held multimeter</p><p>Measuring Capacitance Range : no</p><p>Operating Temperature : 0 - 40 </p><p>DIY Supplies : ELECTRICAL</p><p>Measuring Resistance Range : battery</p><p>Certification : CE</p><p>Origin : Mainland China</p><p>Model Number : XL830L</p><p>Measuring Inductance Range : battery</p><p>Dimensions : (color box packaging) without battery</p><p>DC Current : no</p><p>AC Current : no</p><p>AC Voltage : no</p><p>DC Voltage : no</p><p>Display Type : Digital display</p><p>DC voltage range : 200mV--2-20-200-600V</p><p>DC current range : 200u-2m-20m-200m-10A</p><p>Standard annex : Multimeter, probe, instruction manual, packing box</p><p>net Weight : 153g</p><p>Related Products:ohm meter,lcr meter,capacitor tester,esr meter,transistor tester,inductance meter,multi tester</p>

• 1. Versatile Functions: This Digital Multimeter Measuring Instruments offers a wide range of measurement capabilities including DC voltage (200mV - 600V), AC voltage (200V - 600V), DC current (200uA - 10A), resistance (200 - 2M), and even triode (PNP/NPN) and diode measurements. It is a comprehensive tool for electricians, providing accurate and reliable results.
• 2. User-friendly Design: With its 3 1/2 digital LCD display and data holding function, this multimeter allows for easy reading and recording of measurements. The low voltage symbol display and background light function enhance visibility, especially in dimly lit areas. The compact dimensions (130×65×33mm) and lightweight design (153g without battery) make it convenient to carry around and use.
• 3. Reliable Performance: Designed with precision and accuracy in mind, this multimeter boasts high-quality components that ensure precise readings. The DC voltage has an accuracy of ±0.5%, AC voltage has an accuracy of ±1.0%, and DC current has an accuracy of ±1.8%. The input resistance of 1M provides accurate and stable measurements.
• 4. Enhanced Safety Features: This multimeter is equipped with overload protection, which protects both the user and the device from potential damage caused by excessive currents or voltages. The on/off measurement feature allows for easy operation, and the data retention function ensures that measurements can be easily recorded without the risk of losing them.

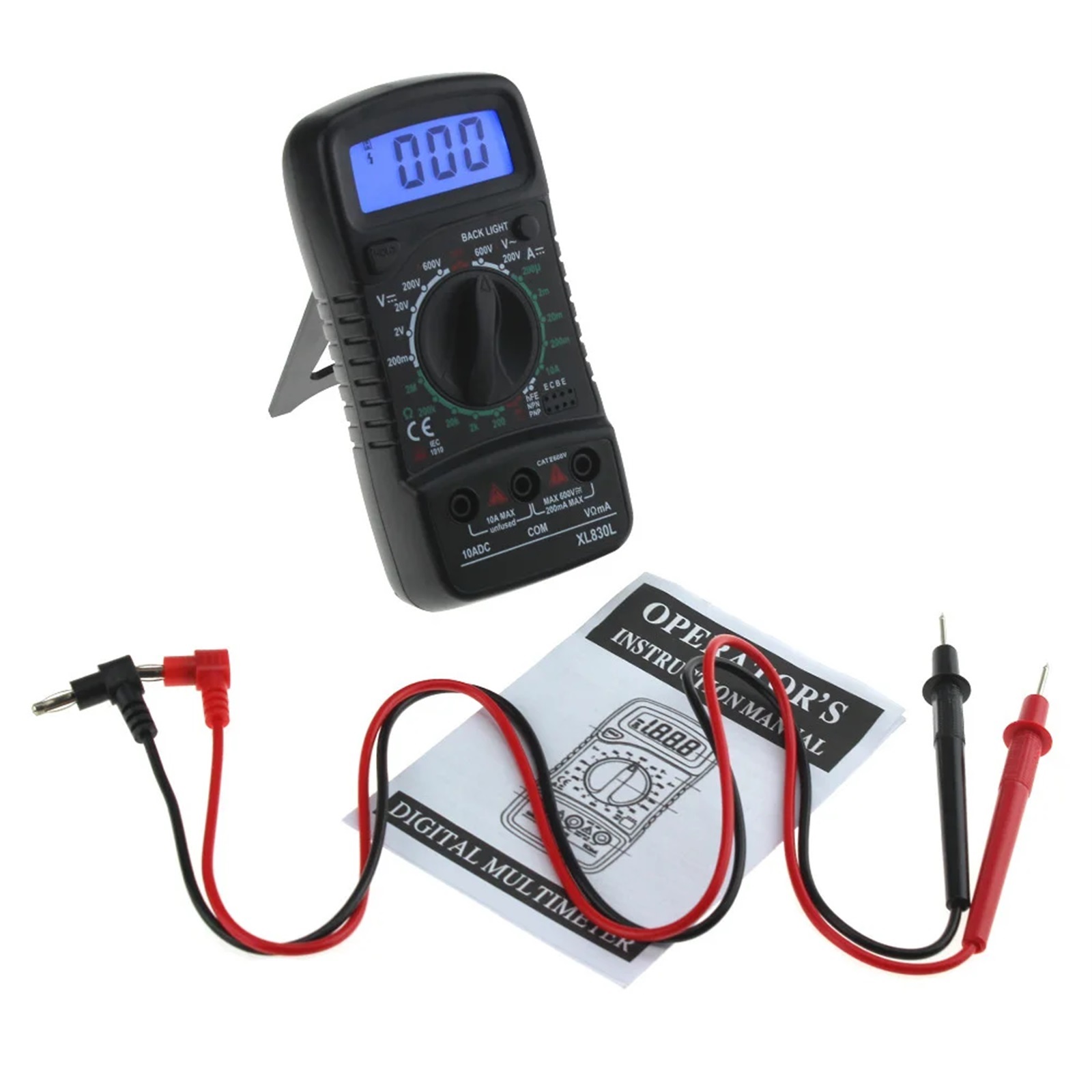

• 5. Convenient Power Supply: Powered by a 9V 6f22 battery (not included), this multimeter offers long-lasting performance. The battery type and display size (45 × 20mm) are clearly specified for easy replacement and readability. Additionally, the package includes the necessary accessories such as test leads, a manual, and a box for convenient storage and transportation.
